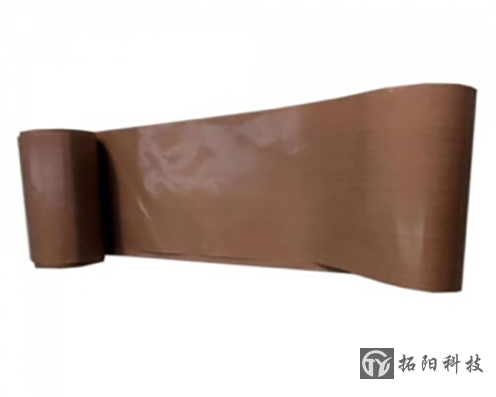

Teflon conveyor belt Direction deviation inspection position and solution:
(1) Check the misalignment between the horizontal axis of the idler and the vertical axis of the Teflon belt conveyor. If the misalignment exceeds 3mm, the long strip mounting holes on both sides of the idler set shall be used for adjustment. The specific method is that which side of the Teflon conveyor belt is biased, which side of the idler group moves forward toward the direction of the Teflon conveyor belt, or the other side moves to the right.
(2) Check the error values of the two plans of the head and tail sound card rack installation with pedestal bearings. If the error of two plans exceeds 1mm, the two plans shall be adjusted in the same plane. The adjustment method of the barrel rolling at the top of the head is: if Teflon Conveyor belt If it deviates to the right side of the barrel, the bearing with seat on the right side of the barrel should move forward and center or the bearing with seat on the left side should move right; If the Teflon conveyor belt deviates to the left side of the barrel, the bearing with seat on the left side of the barrel should move forward and center or the bearing with seat on the right side should move right. The adjustment mode of the tail end barrel is just the opposite of that of the head top barrel.
(3) Check the raw materials in Teflon high temperature tape The part on the. The raw materials are not vertically centered on the cross section of the Teflon conveyor belt, which will cause the conveyor belt direction to deviate. If the raw material deviates to the right, the Teflon conveyor belt deviates to the left, and vice versa. In application, try to make the raw materials vertically centered. In order to reduce or prevent this kind of Teflon conveyor belt from running out of direction, the baffle plate can be raised, and the orientation and position of raw materials can be changed.
